1411960
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

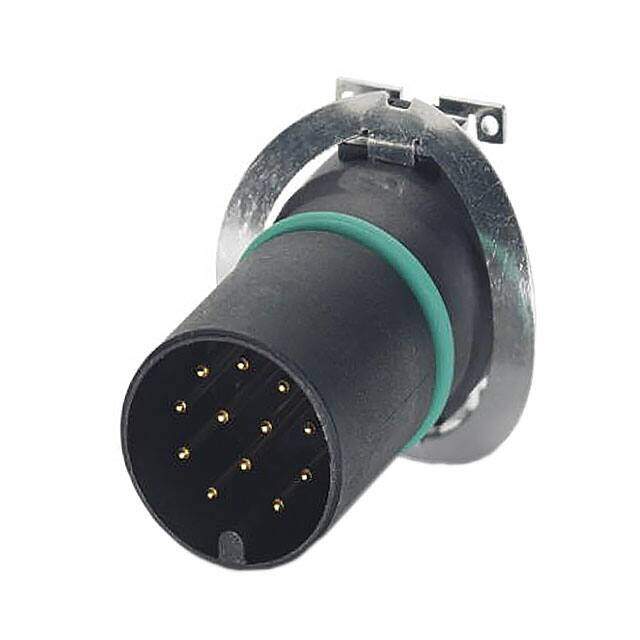

Circular Metric Connectors SACC-CIPM12MS12PSMDS PIN-SHIELDED-TRAY
PDF
/
Buying Options
Total Price: USD $15.22
Unit Price: USD $15.22478
≥1 USD $15.22478
≥10 USD $14.363
≥100 USD $13.55
Inventory: 321
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 12
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2015
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Male Pins
Number of Positions 12
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Voltage - Rated 30V
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M12-12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
