1411953
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

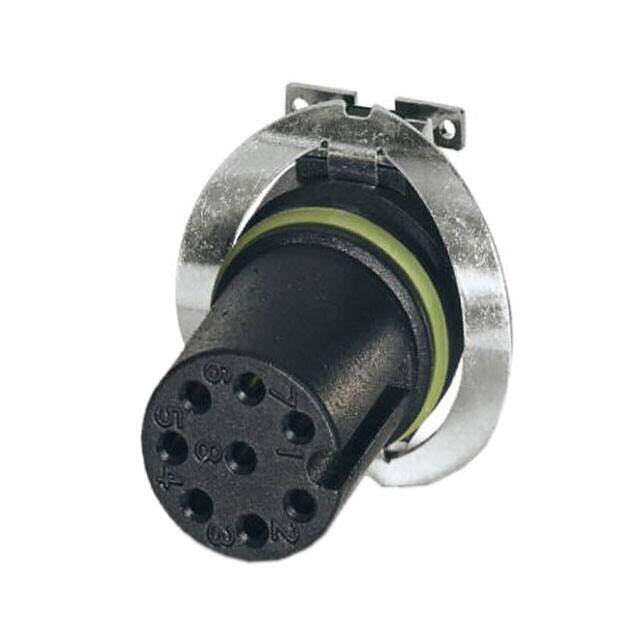

CONN FMALE INSERT 8POS SOLDER
PDF
/
Buying Options
Total Price: USD $8.03
Unit Price: USD $8.03374
≥1 USD $8.03374
≥10 USD $7.579
≥100 USD $7.15
Inventory: 416
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Surface Mount
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -25°C~105°C
Packaging Tray
Published 2014
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 8
Voltage - Rated 30V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 2A
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M12-8
Empty Shell NO
Backshell Type SOLID
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
