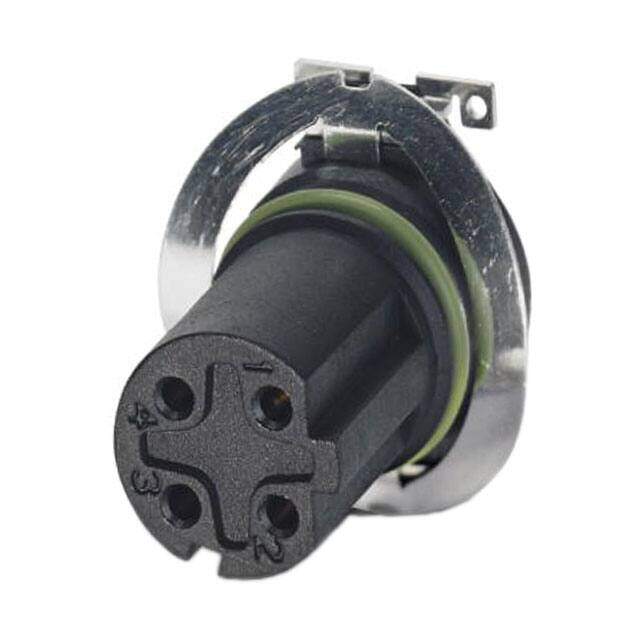

1411950
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN FMALE INSERT 4POS SOLDER
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
≥10 USD $5.75872
≥100 USD $5.601552
≥500 USD $5.23512
≥1000 USD $4.81631
≥3000 USD $4.449861
Inventory: 146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Surface Mount
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -25°C~105°C
Packaging Tray
Published 2014
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 4
Voltage - Rated 250V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Shell Size - Insert M12-4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
