1411943
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

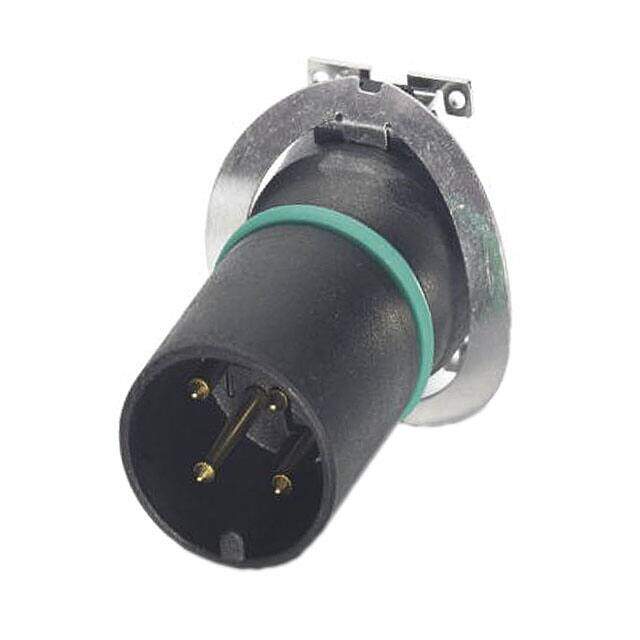

CONN MALE INSERT 5POS GOLD SLDR
PDF
/
Buying Options
Total Price: USD $4.29
Unit Price: USD $4.29215
≥1 USD $4.29215
≥10 USD $4.0492
≥100 USD $3.82
Inventory: 458
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Surface Mount
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2015
Series SACC
JESD-609 Code e4
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Male Pins
Number of Positions 5
Voltage - Rated 60V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 4A
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M12-5
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
