1411927
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

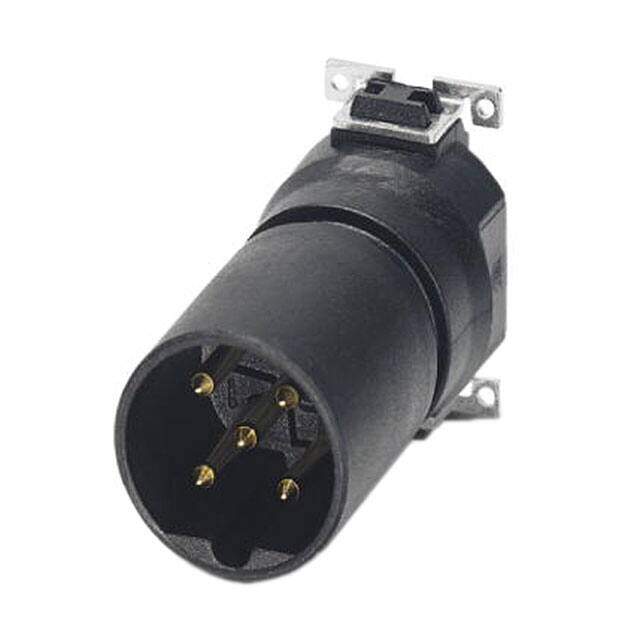

PHOENIX CONTACT 1411927 Circular Connector Insert, SPEEDCON Series, 5 Contacts, Pin, Surface Mount, Gold Plated Contacts
PDF
/
Buying Options
Total Price: USD $4.52
Unit Price: USD $4.51687
≥1 USD $4.51687
≥10 USD $4.2612
≥100 USD $4.02
Inventory: 948
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M12-5
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation B
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Voltage - Rated 60V
Gender Male
Number of Positions 5
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2014
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Insert Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
