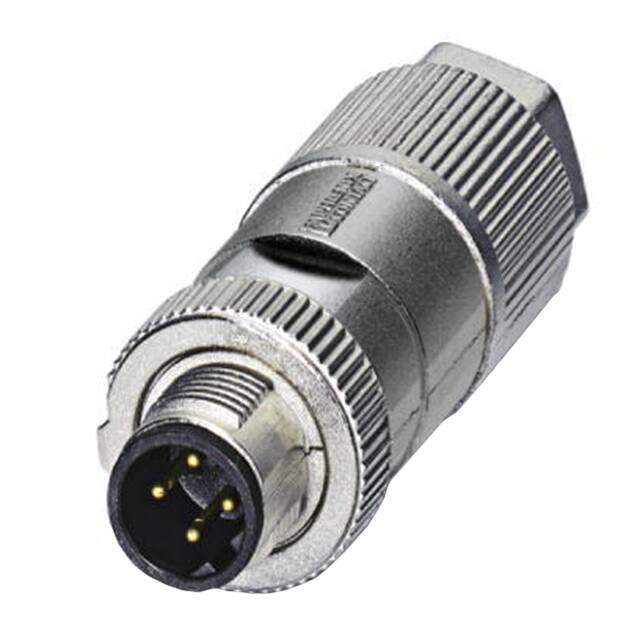

1411068
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Nickel SACC RoHS Compliant Dust Tight IP65Water Resistant Waterproof Circular Connector UL94V-0 -40C~85C 4A 48VAC 60VDC
PDF
/
Buying Options
Total Price: USD $22.72
Unit Price: USD $22.7216
≥1 USD $22.7216
Inventory: 241
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6, Halogen Free
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 4
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation D
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, Water Resistant, Waterproof
