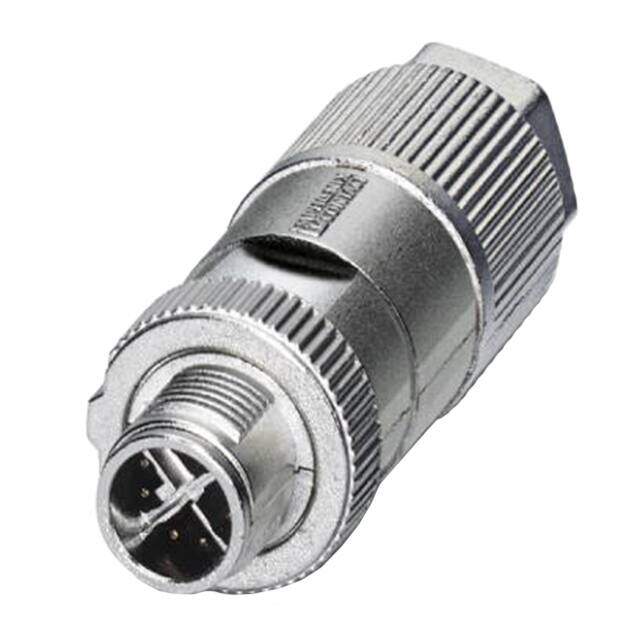

1411044
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE M12 8POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $41.56
Unit Price: USD $41.5624
≥1 USD $41.5624
Inventory: 81
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 600mA
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation X
Current Rating (Amps) 0.5A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6, Halogen Free
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
