1410412
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

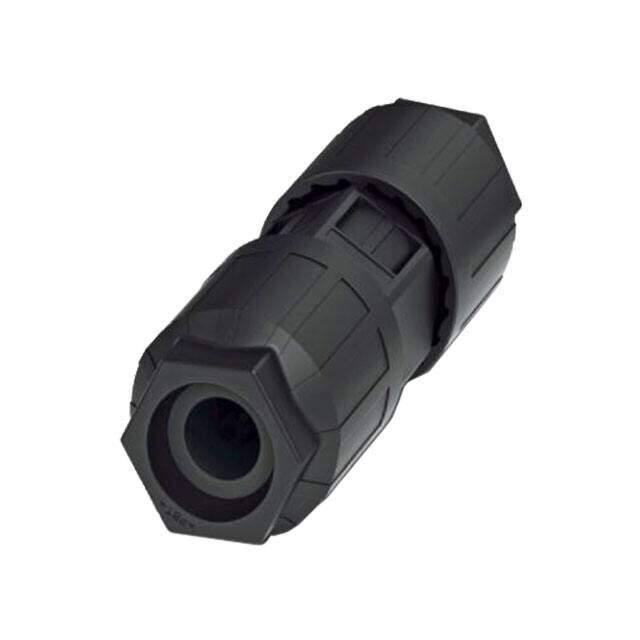

Phoenix Contact QPD Series, Connector
PDF
/
Buying Options
Total Price: USD $27.8
Unit Price: USD $27.7992
≥1 USD $27.7992
≥10 USD $25.57544
≥100 USD $23.629408
≥500 USD $22.517528
≥1000 USD $21.127322
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2015
Series QPD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination IDC
Connector Type Distributor
Number of Positions 5 (4 + PE)
Color Black
Voltage - Rated 1kV
Fastening Type Threaded
Contact Finish - Mating Silver
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 40A
Cable Opening 0.472 ~ 0.787 (12.00mm ~ 20.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP68, Water Resistant, Waterproof
