1410410
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

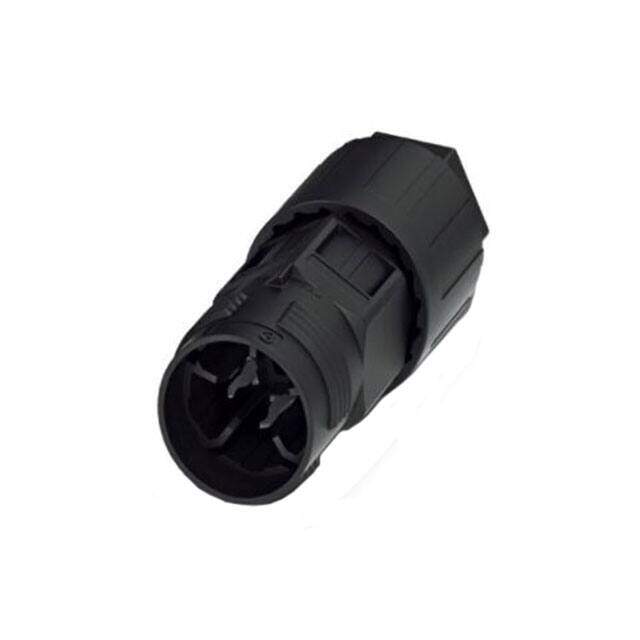

Phoenix Contact QPD Series, Connector
PDF
/
Buying Options
Total Price: USD $17.67
Unit Price: USD $17.665082
≥1 USD $17.665082
≥10 USD $16.665172
≥100 USD $15.721859
≥500 USD $14.831938
≥1000 USD $13.992398
Inventory: 927
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.354 ~ 0.551 (9.00mm ~ 14.00mm)
Current Rating 40A
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 1kV
Color Black
Number of Positions 5 (4 + PE)
Connector Type Distributor
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series QPD
Published 2015
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Polyamide
Shell Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
