1408989
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

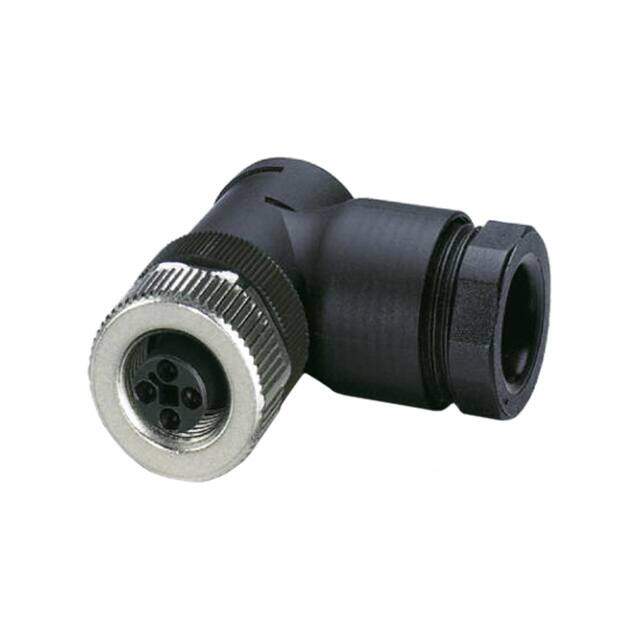

4 (Power) Position Circular Connector Plug, Female Sockets Screw Gold
PDF
/
Buying Options
Total Price: USD $30.06
Unit Price: USD $30.055088
≥1 USD $30.055088
≥10 USD $28.353862
≥100 USD $26.748916
≥500 USD $25.234837
≥1000 USD $23.806444
Inventory: 7275
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Shell Size - Insert M12-4
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation T
Current Rating (Amps) 12A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 63VDC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
