1408988
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

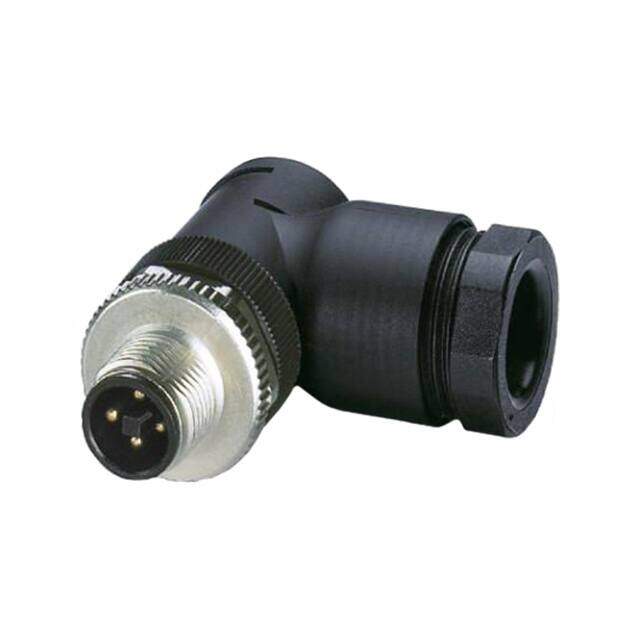

4 (Power) Position Circular Connector Plug, Male Pins Screw Gold
PDF
/
Buying Options
Total Price: USD $21.6
Unit Price: USD $21.5952
≥1 USD $21.5952
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Shell Size - Insert M12-4
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation T
Current Rating (Amps) 12A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 63VDC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
