RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

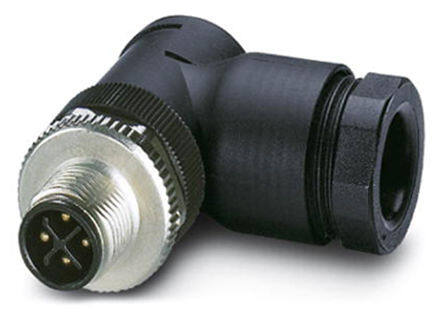

Description CONN PLUG MALE 4POS SCREW
PDF
/
Buying Options
Total Price: USD $26.19
Unit Price: USD $26.1888
≥1 USD $26.1888
≥10 USD $24.09616
≥100 USD $22.262768
≥500 USD $21.215128
≥1000 USD $21.098669
Inventory: 91
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Shell Size - Insert M12-4
Shell Finish Nickel
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation S
Current Rating (Amps) 12A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 630VAC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
