1407583
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

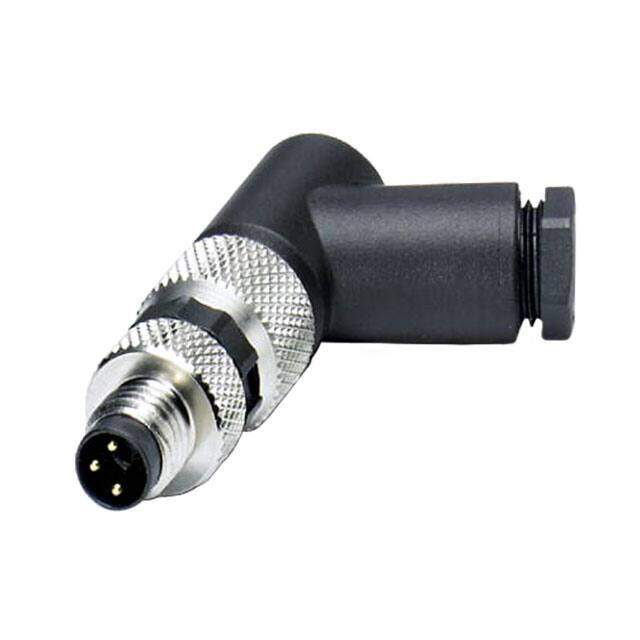

CONN PLUG MALE 3POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $20.04
Unit Price: USD $20.038099
≥1 USD $20.038099
≥10 USD $18.903875
≥100 USD $17.833834
≥500 USD $16.824374
≥1000 USD $15.872051
Inventory: 9367
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Angled
Shell Material Brass
Housing Material Plastic
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 3
Color Black, Silver
Gender Male
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
