1407582
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

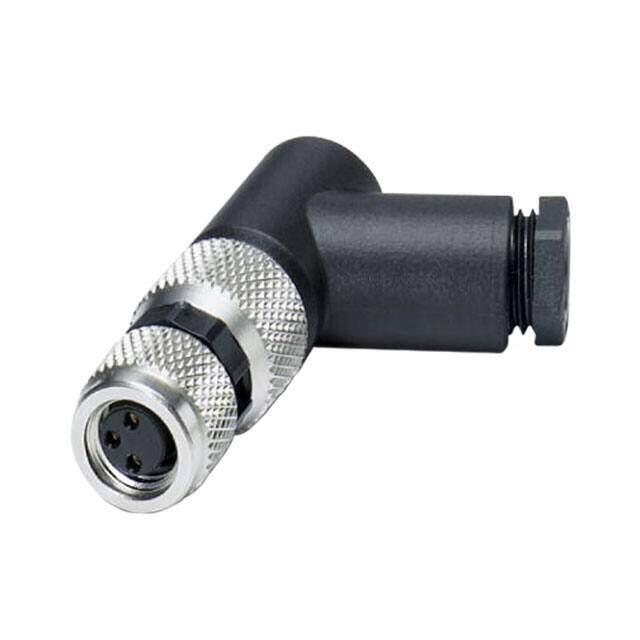

CONN RCPT FMALE 3POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $22.96
Unit Price: USD $22.9592
≥1 USD $22.9592
≥10 USD $21.12352
≥100 USD $19.516112
≥500 USD $18.597744
≥1000 USD $18.495629
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB
Technical
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Brass
Mounting Type Free Hanging (In-Line), Angled
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
