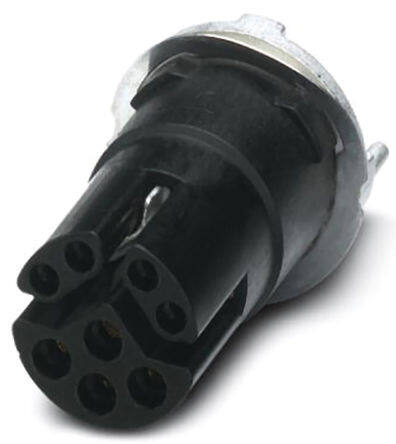

1405225
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors CAT5e Y-Code M12 Contact Insert
PDF
/
Inventory: 1144
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Number of Contacts 8
Current Rating 6A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Y
Current Rating (Amps) 0.5A 6A
Contact Finish - Mating Gold
Voltage - Rated 48VAC 50VDC
Number of Positions 8 (4 Data + 4 Power)
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Insert Only, Requires Shell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~90°C
Physical
Insert Material Polyphthalamide (PPA)
Mounting Type Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 13 Weeks
