1404643
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

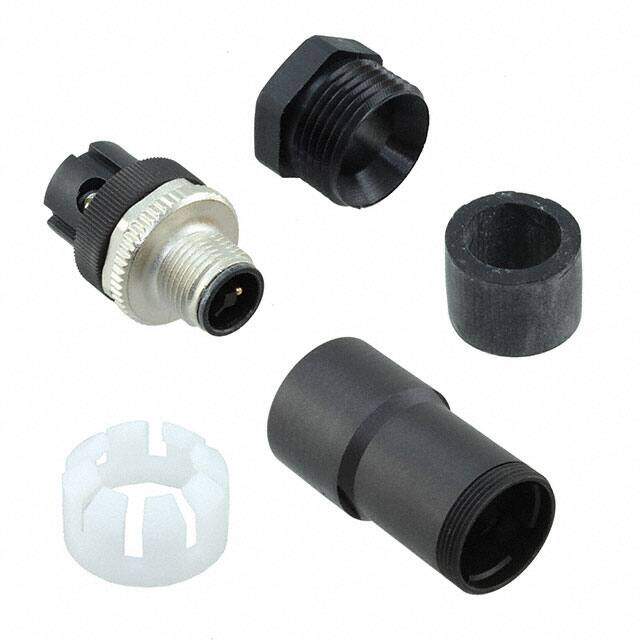

Circular Metric Connectors SACC-M12MST 3PECON-PG11-M
PDF
/
Buying Options
Total Price: USD $26.58
Unit Price: USD $26.5848
≥1 USD $26.5848
≥10 USD $24.46048
≥100 USD $22.599456
≥500 USD $21.535888
≥1000 USD $21.417651
Inventory: 151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Zinc
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 4 (Power)
Color Black, Silver
Voltage - Rated 63VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation T
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 12A
Shell Finish Nickel
Shell Size - Insert M12-4
Number of Contacts 4
Contact Gender Male
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Thread Size M12
Wire/Cable Diameter 10 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
