1404642
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

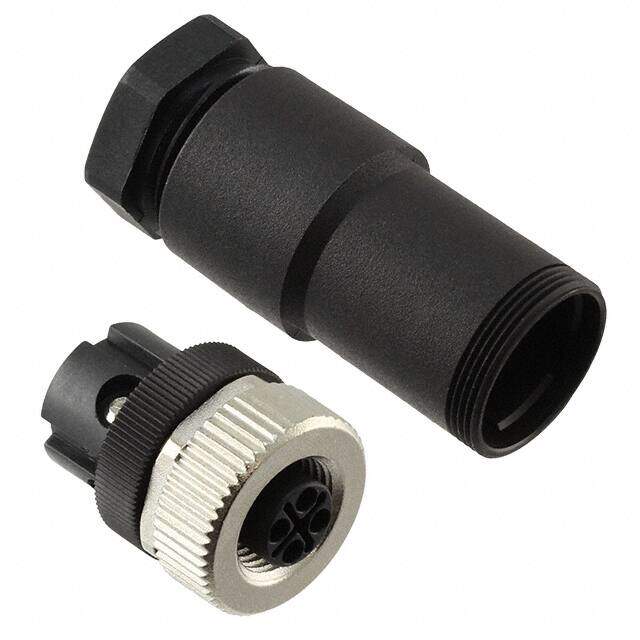

Circular Metric Connectors SACC-M12FSS- 3PECON-PG11-M
PDF
/
Buying Options
Total Price: USD $26.58
Unit Price: USD $26.5848
≥1 USD $26.5848
≥10 USD $24.46048
≥100 USD $22.599456
≥500 USD $21.535888
≥1000 USD $21.417651
Inventory: 646
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire/Cable Diameter 10 mm
Thread Size M12
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Contact Gender Female
Number of Contacts 4
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 12A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation S
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 630VAC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
