RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

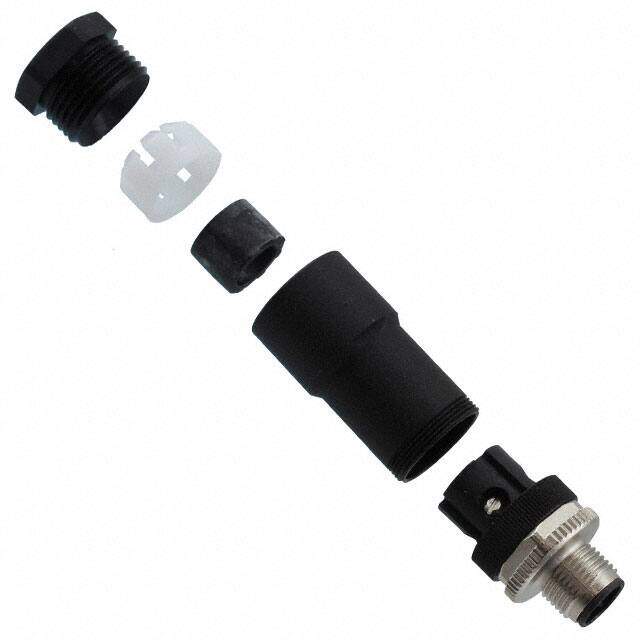

Description Circular Metric Connectors SACC-M12MSS 3PECON-PG11-M
PDF
/
Buying Options
Total Price: USD $26.72
Unit Price: USD $26.7168
≥1 USD $26.7168
≥10 USD $24.57752
≥100 USD $22.707168
≥500 USD $21.638496
≥1000 USD $21.519731
Inventory: 379
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire/Cable Diameter 10 mm
Thread Size M12
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Contact Gender Male
Number of Contacts 4
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 12A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation S
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 630VAC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
