1404421
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

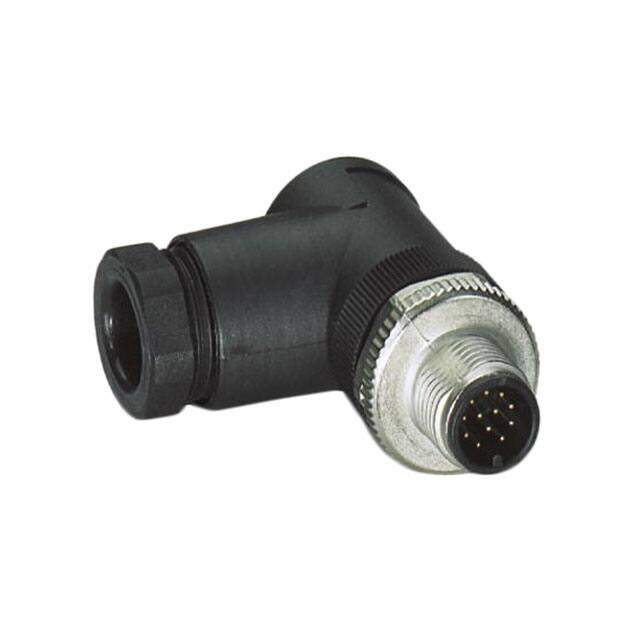

Circular Metric Connectors SACC-M12MR- 12SOL-PG 9-M
PDF
/
Buying Options
Total Price: USD $40.32
Unit Price: USD $40.3216
≥1 USD $40.3216
≥10 USD $37.09552
≥100 USD $34.272656
≥500 USD $32.65988
≥1000 USD $32.480589
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Wire/Cable Diameter 8 mm
Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Contact Gender Male
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Current Rating (Amps) 1.5A
Contact Finish - Mating Gold
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 30VAC/DC
Color Black, Silver
Number of Positions 12
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Polyamide
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
