1404419
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

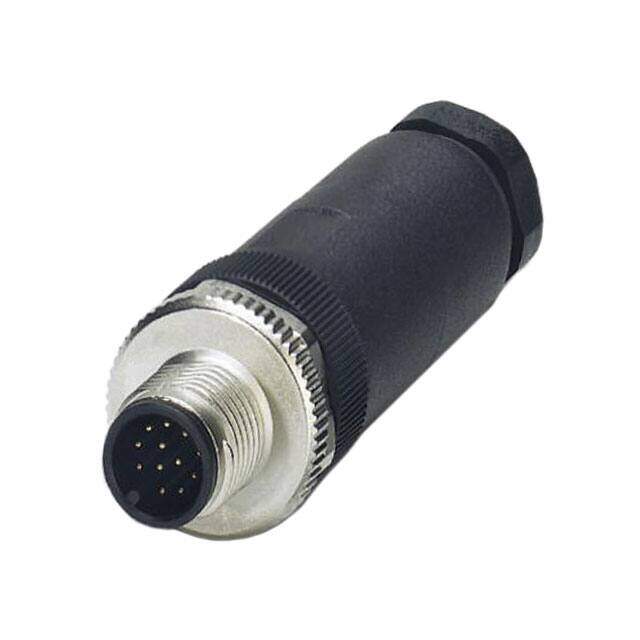

Circular Metric Connectors SACC-M12MS 12SOL-PG 9-M
PDF
/
Inventory: 3045
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 12
Color Black, Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Shell Finish Nickel
Shell Size - Insert M12-12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
