1404418
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

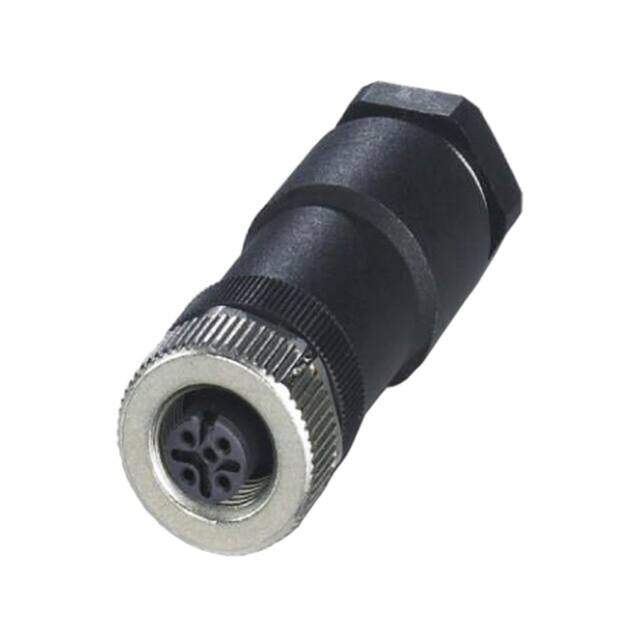

Plug-in connector SACC-M12FS-5CON-PG11-M PWR 1404418 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $31.01
Unit Price: USD $31.0112
≥1 USD $31.0112
≥10 USD $28.534
≥100 USD $26.362688
≥500 USD $25.29648
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 8A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated DC 125V
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Black, Silver
Number of Positions 5 (Power)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
