Package /
Category Connectors, Interconnects / Circular Connectors

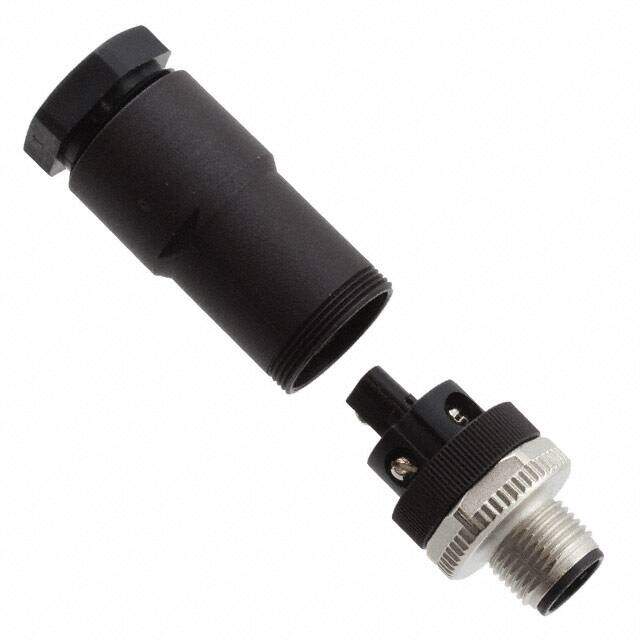

Description Plug-in connector SACC-M12MS-5CON-PG11-M PWR 1404417 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $31.54
Unit Price: USD $31.536465
≥1 USD $31.536465
≥10 USD $29.751377
≥100 USD $28.067339
≥500 USD $26.47862
≥1000 USD $24.979829
Inventory: 5842
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 5 (Power)
Color Black, Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 125V
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 8A
Shell Finish Nickel
Shell Size - Insert M12-5
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
