1404415
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

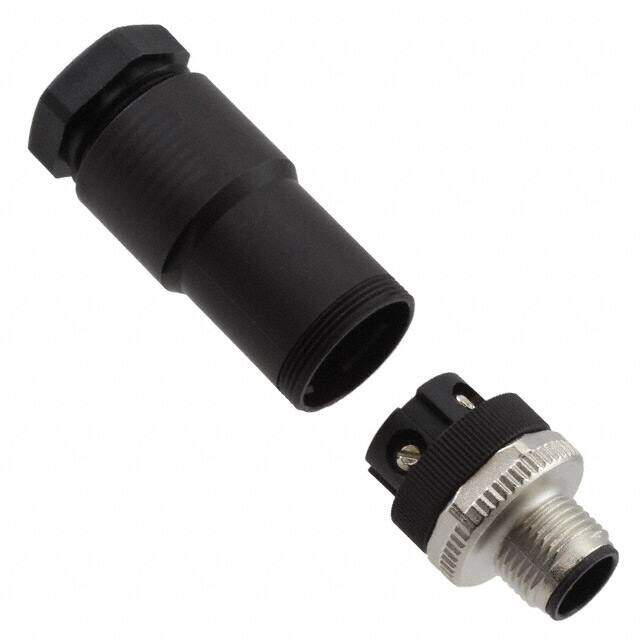

Plug-in connector SACC-M12MS-4CON-PG11-M PWR 1404415 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $25.75
Unit Price: USD $25.7488
≥1 USD $25.7488
≥10 USD $23.68784
≥100 USD $21.885776
≥500 USD $20.855912
≥1000 USD $20.741389
Inventory: 99
Minimum: 1
-
+
Technical Details
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Copper Zinc
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 4 (Power)
Color Black, Silver
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Number of Contacts 4
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 8A
Supply Chain
Factory Lead Time 4 Weeks
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
