RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

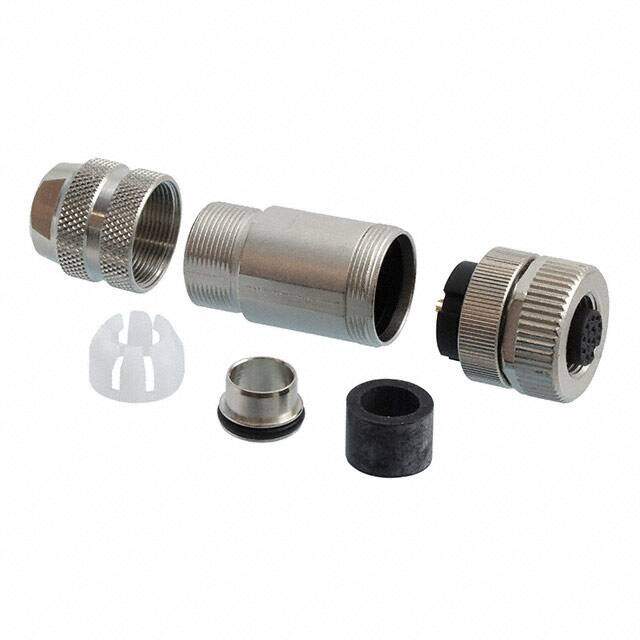

Description Plug-in connector SACC-M12FS-12SOL-PG 9-M SH 1404411 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $55.09
Unit Price: USD $55.088
≥1 USD $55.088
≥10 USD $50.67744
≥100 USD $46.82128
≥500 USD $44.617848
Inventory: 112
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Metal
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 12
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Shell Finish Nickel
Shell Size - Insert M12-12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)

Compliance

Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
