Package /
Category Connectors, Interconnects / Circular Connectors

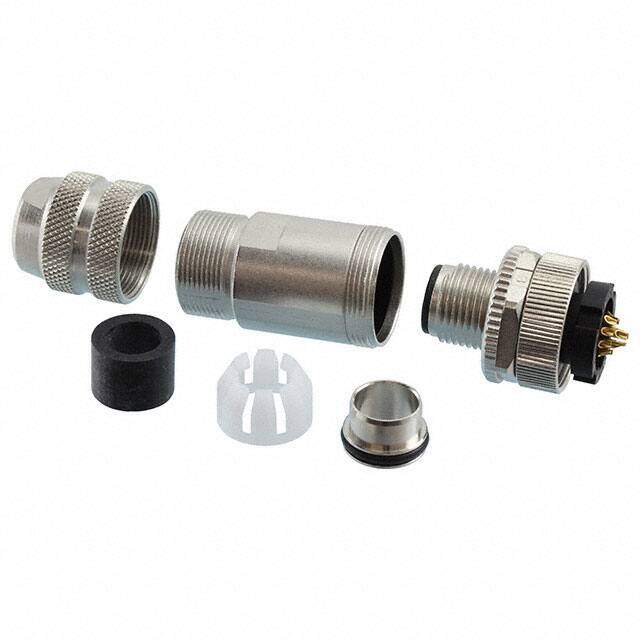

Description Plug-in connector SACC-M12MS-12SOL-PG 9-M SH 1404410 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $52.37
Unit Price: USD $52.3688
≥1 USD $52.3688
≥10 USD $48.17824
≥100 USD $44.51216
≥500 USD $42.417408
Inventory: 78
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Technical

Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 12
Current Rating (Amps) 1.5A
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Silver
Number of Positions 12
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA), Nylon
Housing Material Metal
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
