1403784
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

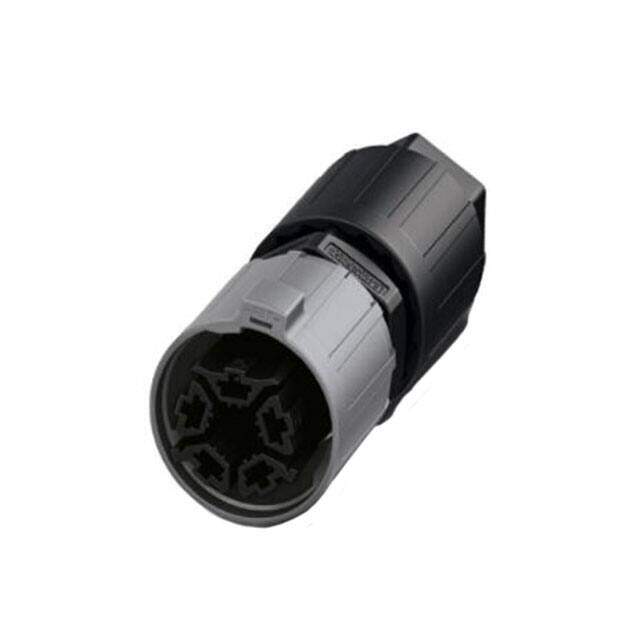

QUICKON plug-in connector series QPD P Number of pins: 4 1403784 Phoeni
PDF
/
Buying Options
Total Price: USD $14.72
Unit Price: USD $14.7224
≥1 USD $14.7224
≥10 USD $13.54584
≥100 USD $12.514832
≥500 USD $11.925848
≥1000 USD $11.860429
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Plug-In
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Polyamide (PA), Nylon
Housing Material Polyamide
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2015
Series QPD
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Distributor
Number of Positions 5 (4 + PE)
Color Black, Gray
Voltage - Rated 1kV
Fastening Type Threaded
Contact Finish - Mating Silver
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 20A
Number of Contacts 5
Cable Opening 0.236 ~ 0.433 (6.00mm ~ 11.00mm)
Dimensions
Length 87.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings IP68
