1403372
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

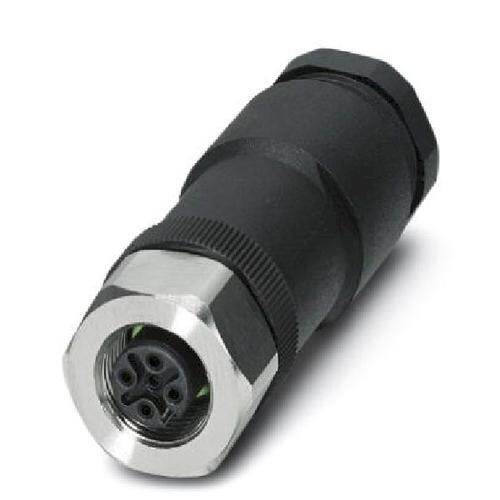

CONN RCPT FMALE 5POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $21.89
Unit Price: USD $21.8856
≥1 USD $21.8856
≥10 USD $20.13264
≥100 USD $18.60056
≥500 USD $17.725224
≥1000 USD $17.627949
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Technical
Shell Size - Insert M12-5
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Shell Material Stainless Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
