1401097
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

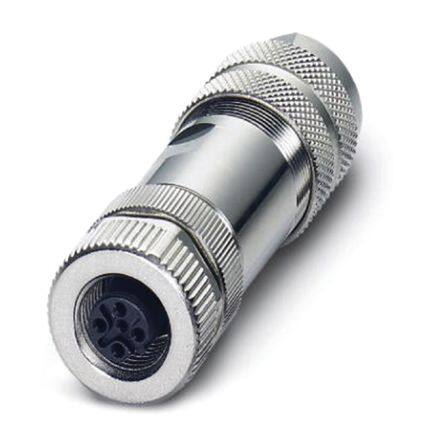

Bus system plug-in connector SACC-M12FSB-5CON-PG9 SH XL PB 1401097 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $32.12
Unit Price: USD $32.116288
≥1 USD $32.116288
≥10 USD $30.29838
≥100 USD $28.583387
≥500 USD $26.965457
≥1000 USD $25.439111
Inventory: 8193
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Metal
Weight 60.000008g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
