1068453
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

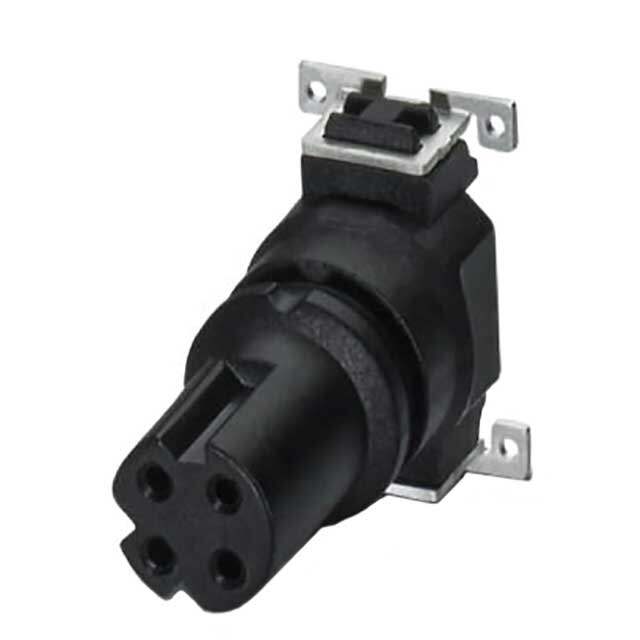

SACC D IP67 - Dust Tight Waterproof Board Guide Insert Only Requires Shell Circular Connector -25C~105C 4A 50VAC 60VDC
PDF
/
Buying Options
Total Price: USD $3.2
Unit Price: USD $3.20226
≥1 USD $3.20226
≥10 USD $3.021
≥100 USD $2.85
Inventory: 612
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M8-4
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation D
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Voltage - Rated 50VAC 60VDC
Color Black
Number of Positions 4
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C
Physical
Insert Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
