1027669
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

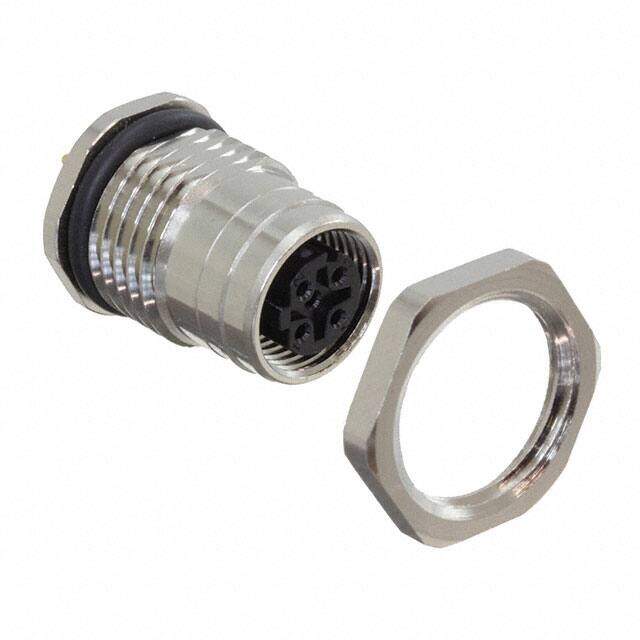

CONN RCPT FMALE 5POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $10.41
Unit Price: USD $10.4104
≥1 USD $10.4104
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M12-5
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SACC
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
