RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

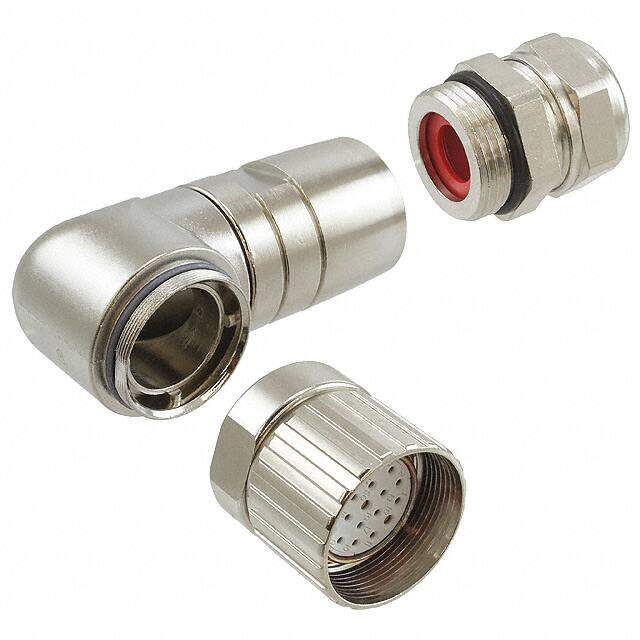

Description Circular Metric Connectors V-RC/TWUM 13/ KVD 13/LBL 16+3
PDF
/
Buying Options
Total Price: USD $96.58
Unit Price: USD $96.58
≥1 USD $96.58
≥10 USD $88.85096
≥100 USD $82.090272
≥500 USD $78.22716
Inventory: 69
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire/Cable Diameter 14 mm
Thread Size M23
Cable Opening 0.394 ~ 0.551 (10.00mm ~ 14.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M23-19
Shell Finish Nickel
Current Rating 10A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation Keyed
Total Number of Contacts 19
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 150V
Color Silver
Number of Positions 19
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series V
Published 2011
Packaging Bulk
Operating Temperature -20°C~80°C

Physical

Backshell Material, Plating Gadolinium-Zinc, Nickel
Insert Material Polybutylene Terephthalate (PBT)
Weight 178.499994g
Housing Material Brass
Shell Material Gadolinium-Zinc
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 5 Weeks
