1000042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

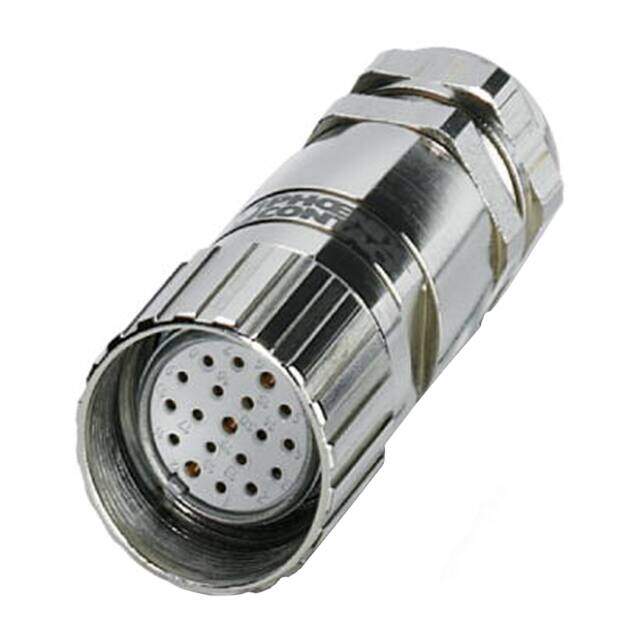

Circular Metric Connectors V-RC/TGUM 13/ KVD 13/LBL 16+3
PDF
/
Buying Options
Total Price: USD $74.33
Unit Price: USD $74.3336
≥1 USD $74.3336
≥10 USD $68.39008
≥100 USD $63.186816
≥500 USD $60.213208
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M23
Cable Opening 0.394 ~ 0.551 (10.00mm ~ 14.00mm)
Number of Ports 1
Max Current Rating 10A
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M23-19
Shell Finish Nickel
Current Rating 10A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation Keyed
Total Number of Contacts 19
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 150V
Gender Female
Color Silver
Number of Positions 19
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series V
Published 2011
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Backshell Material, Plating Gadolinium-Zinc, Nickel
Insert Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Shell Material Gadolinium-Zinc
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
