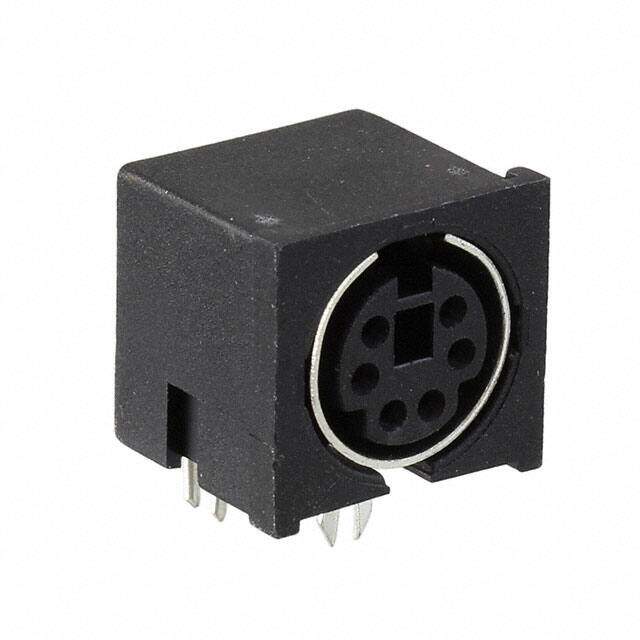

MD-6006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 6P SLDR
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.350974
≥1 USD $1.350974
≥200 USD $0.539602
≥400 USD $0.521221
≥1000 USD $0.512031
Inventory: 8281
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series MD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 6
Color Black
Applications Audio, Video
Voltage - Rated 30VAC
Fastening Type Push-Pull
Subcategory DIN Connectors
Contact Finish - Mating Gold
DIN Conformance YES
Total Number of Contacts 6
Orientation Keyed
Shielding Unshielded
Current Rating 1A
Reference Standard UL
Shell Size - Insert Mini DIN
Reliability COMMERCIAL
Body Length or Diameter 0.551 inch
Body Breadth 0.504 inch
Body Depth 0.504 inch
Rated Current (Signal) 1A
Contact Style RND PIN-SKT
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1400VAC V
Number of Ports 1
Dimensions
Contact Finish Thickness - Mating Flash
Length - Termination 0.138 inch
Compliance
RoHS Status ROHS3 Compliant
