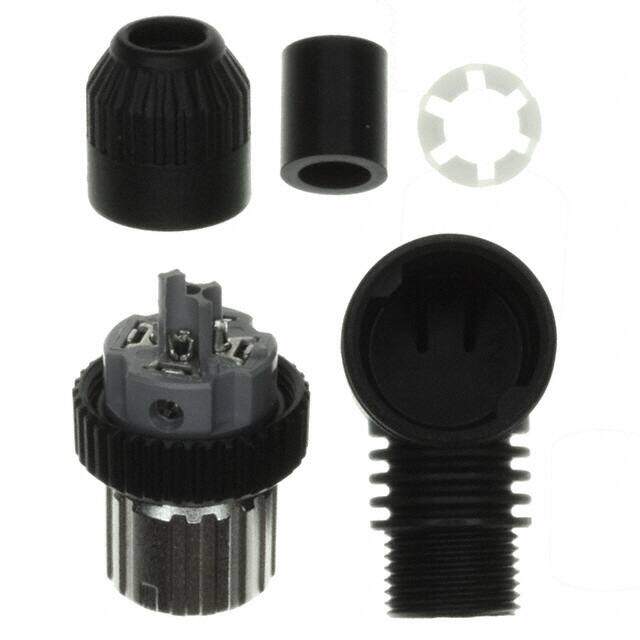

XS5C-D4S4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors Socket, Angled 5 Pin Screw-on 4mm Dia Cbl
PDF
/
Inventory: 5490
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Alloy
Insert Material Polybutylene Terephthalate (PBT)
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -25°C~70°C
Packaging Tray
Published 2002
Series XS5
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black, Silver
Voltage - Rated 250VDC
Fastening Type Push-Twist
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Orientation Keyed
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Cable Opening 0.157 ~ 0.197 (4.00mm ~ 5.00mm)
Dimensions
Contact Finish Thickness - Mating 16.0μin 0.41μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
