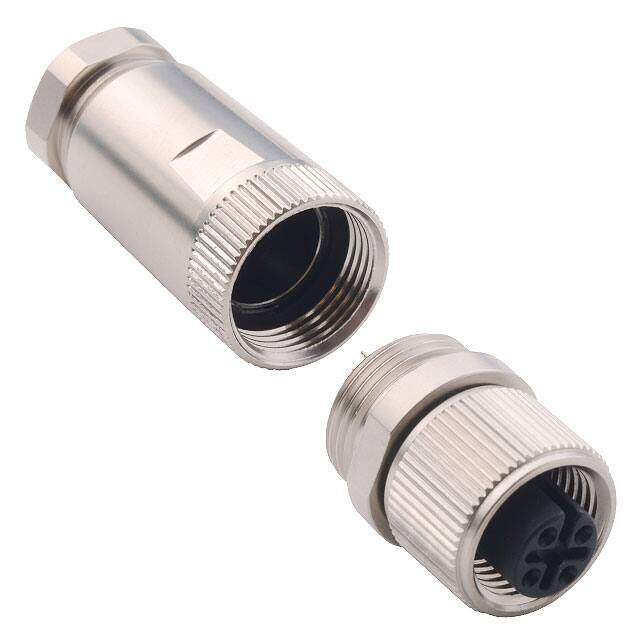

858-004-203RKT4
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $19.32
Unit Price: USD $19.3248
≥1 USD $19.3248
≥10 USD $18.392
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Insert Material Polybutylene Terephthalate (PBT)
Backshell Material, Plating Aluminum Alloy, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2017
Series VULCON?.
JESD-609 Code e4
Feature Backshell, Coupling Nut, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 4
Color Silver
Applications Industrial, Medical
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert M12-4
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
