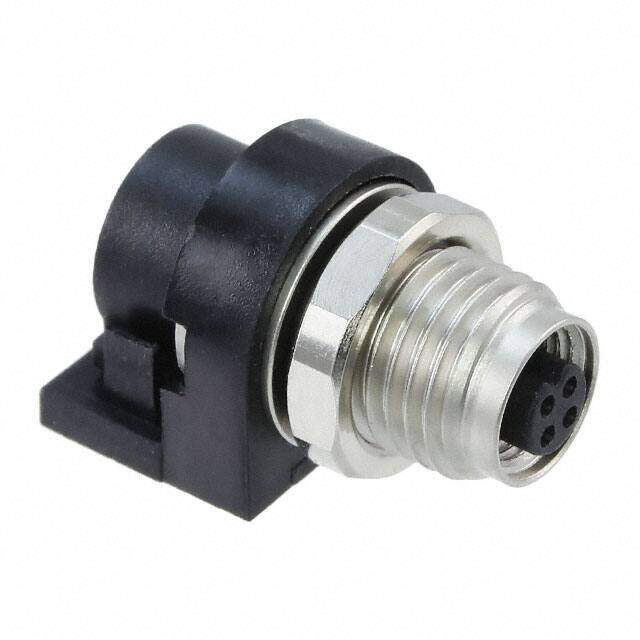

853-004-213R001

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG FMALE 4POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $13.18
Unit Price: USD $13.175903
≥1 USD $13.175903
≥10 USD $12.430097
≥100 USD $11.726507
≥500 USD $11.062748
≥1000 USD $10.436549
Inventory: 960
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Number of Pins 4
Shell Material Brass
Insert Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Published 2015
Series VULCON?.
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black, Silver
Applications Industrial, Medical
Gender Receptacle
Voltage - Rated 60V
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
Current Rating (Amps) 1A
Orientation Keyed
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Shell Finish Nickel
Shell Size - Insert M5-4

Dimensions

Contact Finish Thickness - Mating Flash

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
