852-003-113R001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

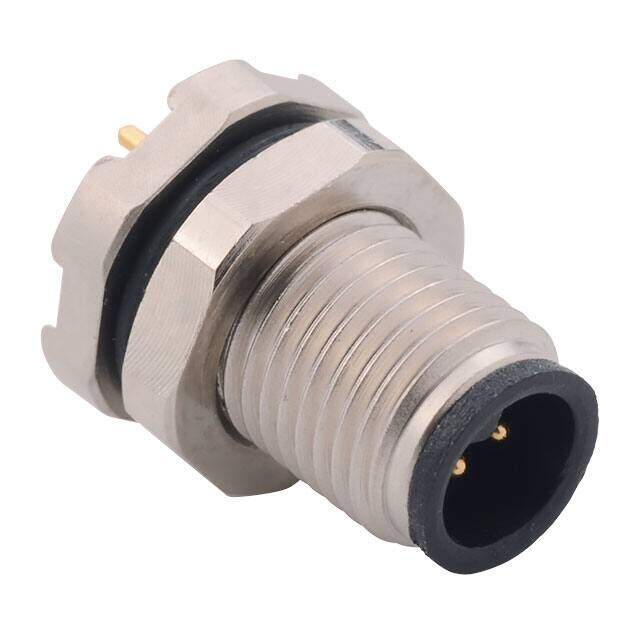

NORCOMP 852-003-113R001 SENSOR CONNECTOR, M5, PLUG, 3POS
PDF
/
Inventory: 9369
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Shell Size - Insert M5-3
Shell Finish Nickel
Current Rating 1A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation Keyed
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 60V
Applications Industrial, Medical
Color Silver
Number of Positions 3
Connector Type Receptacle, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Series VULCON?.
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Supply Chain
Factory Lead Time 14 Weeks
