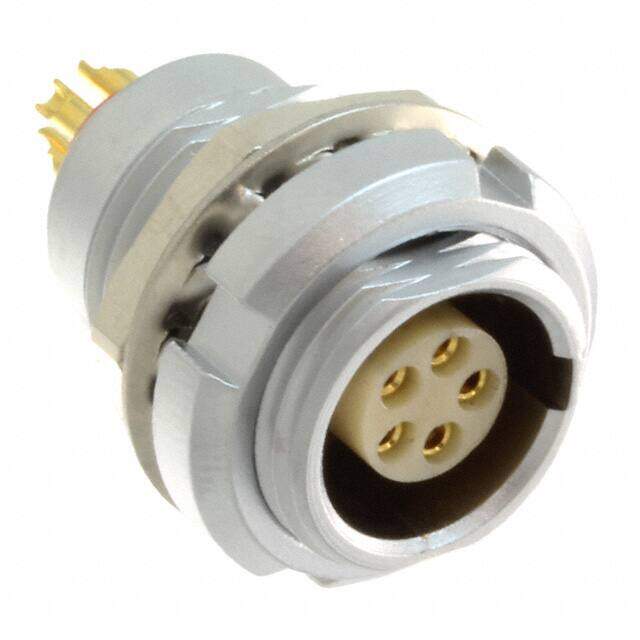

821B005-203R001

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 5POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $30.04
Unit Price: USD $30.039741
≥1 USD $30.039741
≥10 USD $28.339381
≥100 USD $26.735269
≥500 USD $25.221944
≥1000 USD $23.794291
Inventory: 3680
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP50
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness - Mating 7.00μin 0.178μm

Technical

Shell Finish Nickel
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 9A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 415V
Applications Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series QUIK-LOQ? 821B
Published 2016
Packaging Tray
Operating Temperature -40°C~200°C

Physical

Insert Material Polyphenylene Sulfide (PPS)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
