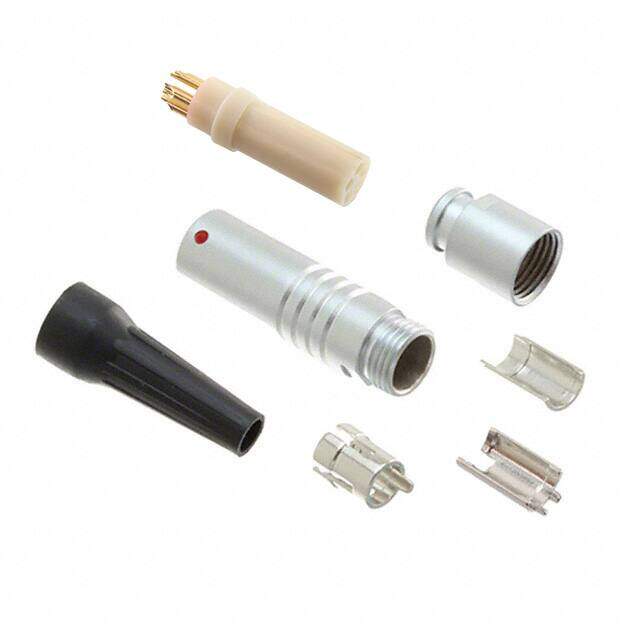

820B005-273L301
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 5POS SOLDER CUP
PDF
/
Inventory: 3153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 7.00μin 0.178μm
Technical
Cable Opening 0.098 ~ 0.126 (2.50mm ~ 3.20mm)
Shell Finish Nickel
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 6.5A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 280V
Applications Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Strain Relief
JESD-609 Code e4
Series QUIK-LOQ? 820B
Published 2017
Packaging Tray
Operating Temperature -40°C~200°C
Physical
Backshell Material, Plating Brass, Chrome
Insert Material Polyphenylene Sulfide (PPS)
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
