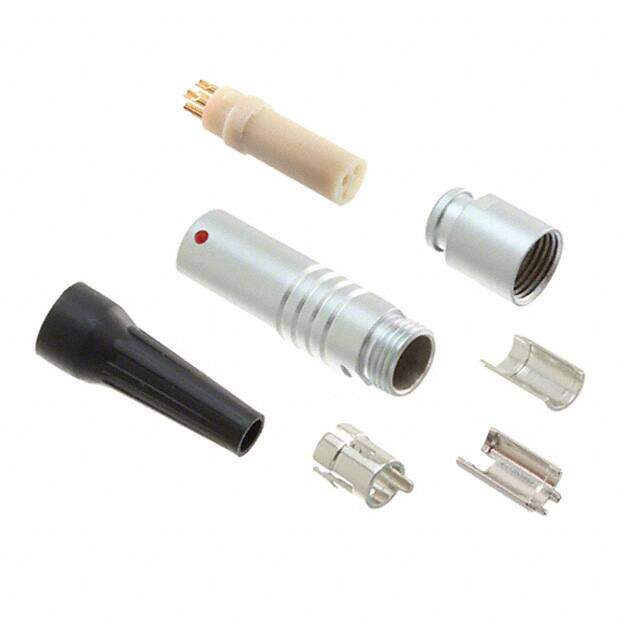

820B004-273L351
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS SOLDER CUP
PDF
/
Inventory: 5506
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 7.00μin 0.178μm
Technical
Shell Finish Nickel
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 7A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 280V
Applications Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Color Black, Silver
Min Operating Temperature -40°C
Max Operating Temperature 200°C
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Strain Relief
Series QUIK-LOQ? 820B
Published 2017
Packaging Tray
Operating Temperature -40°C~200°C
Physical
Backshell Material, Plating Brass, Chrome
Insert Material Polyphenylene Sulfide (PPS)
Shell Material Brass
Number of Pins 4
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
