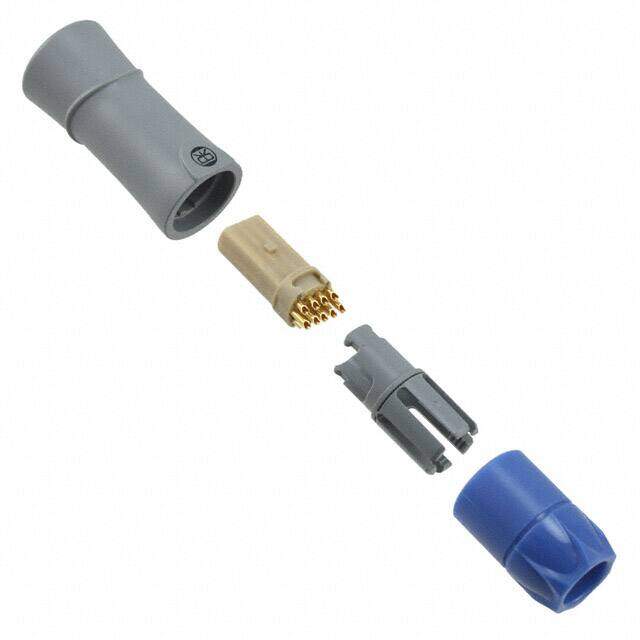

XRN.M13.GLL.6A
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 13POS SOLDER CUP
PDF
/
Inventory: 1000
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Sulfone
Insert Material Polyetheretherketone (PEEK)
Backshell Material, Plating Sulfone
Technical
Operating Temperature -50°C~170°C
Packaging Bulk
Series XP
Feature Backshell
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 13
Max Operating Temperature 170°C
Min Operating Temperature -50°C
Color Blue, Gray
Applications Industrial, Medical, Testing Equipment & Measurement
Fastening Type Push-Pull
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Cable Opening 0.209 ~ 0.256 (5.30mm ~ 6.50mm)
Contact Gender Female
Number of Contacts 13
Shell Size - Insert M13
Current Rating 4A
Ingress Protection IP50 - Dust Protected
Shielding Unshielded
Orientation N (Normal)
Compliance
Ratings IP50
RoHS Status RoHS Compliant
