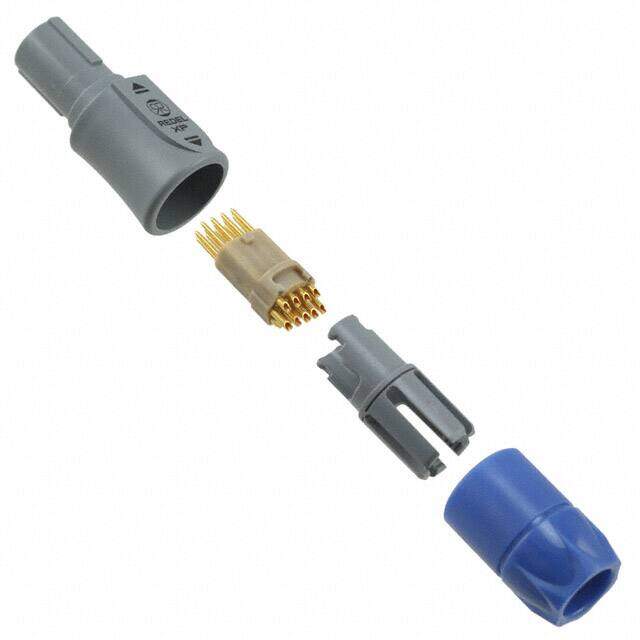

XAN.M13.GLA.6G
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 13POS SOLDER CUP
PDF
/
Inventory: 9563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP50
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
Cable Opening 0.209 ~ 0.256 (5.30mm ~ 6.50mm)
Contact Gender Male
Shell Size - Insert M13
Current Rating 4A
Ingress Protection IP50 - Dust Protected
Shielding Unshielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Push-Pull
Applications Industrial, Medical, Testing Equipment & Measurement
Color Gray
Number of Positions 13
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series XP
Packaging Bulk
Operating Temperature -50°C~170°C
Physical
Body Material Metal
Insert Material Polyetheretherketone (PEEK)
Shell Material Sulfone
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
