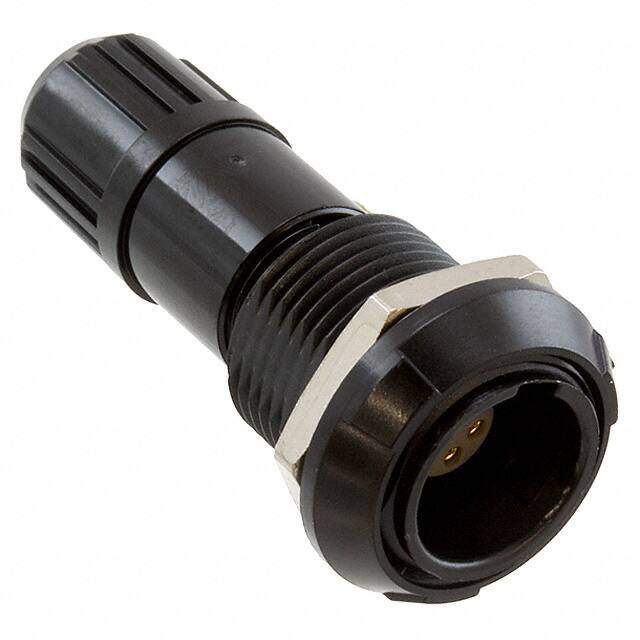

PTG.M0.6NL.LC65N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 6POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $25.71
Unit Price: USD $25.7136
≥1 USD $25.7136
≥10 USD $22.5192
≥100 USD $21.546272
≥500 USD $20.851248
≥1000 USD $20.156224
≥3000 USD $19.04415
Inventory: 318
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Technical
Cable Opening 0.209 ~ 0.256 (5.30mm ~ 6.50mm)
Contact Gender Female
Shell Size - Insert M06
Current Rating 6A
Ingress Protection IP50 - Dust Protected
Shielding Unshielded
Orientation G
Contact Finish - Mating Gold
Fastening Type Push-Pull, Detent Lock
Applications Automotive, Industrial, Medical, Testing Equipment & Measurement
Color Black
Number of Positions 6
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series 1P
Packaging Bulk
Operating Temperature -50°C~150°C
Physical
Backshell Material, Plating Polysulfone (PSU)
Insert Material Polyetheretherketone (PEEK)
Shell Material Polysulfone (PSU)
Mounting Feature Front and Rear Side Nut
Mounting Type Free Hanging (In-Line); Panel Mount
Mount Bulkhead, Free Hanging, Front, Panel, Rear Side Nut
Supply Chain
Factory Lead Time 12 Weeks
