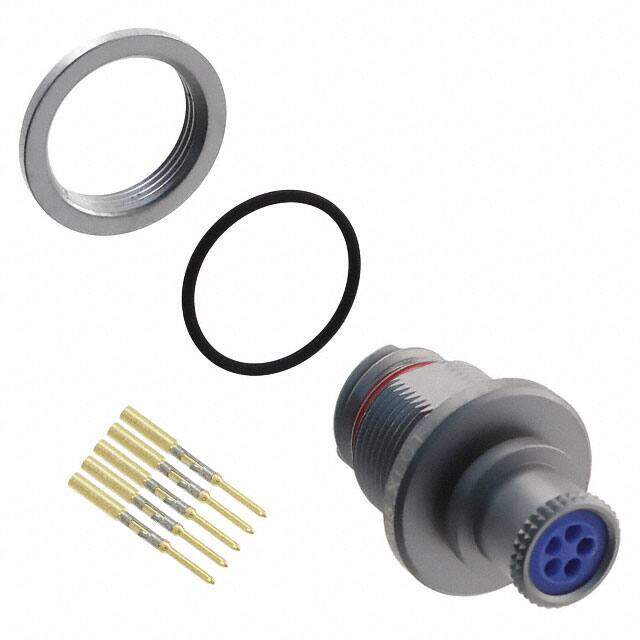

PES.0M.305.XLCT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 5POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $55.04
Unit Price: USD $55.044
≥1 USD $55.044
≥10 USD $50.51112
≥100 USD $48.568608
≥500 USD $46.949584
≥1000 USD $44.359216
Inventory: 27
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Gold, Nickel
Mount Flanges, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Aluminum Alloy
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~200°C
Packaging Bulk
Series 0M
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 5
Color Gray
Applications Aerospace, Automotive, Aviation, Military
Voltage - Rated 1.25kV
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation S
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 6.5A
Shell Finish Nickel
Shell Size - Insert 305
Contact Gender Male
Wire/Cable Gauge 26 AWG
Cable Opening 0.315 (8.00mm)
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP68, Waterproof
