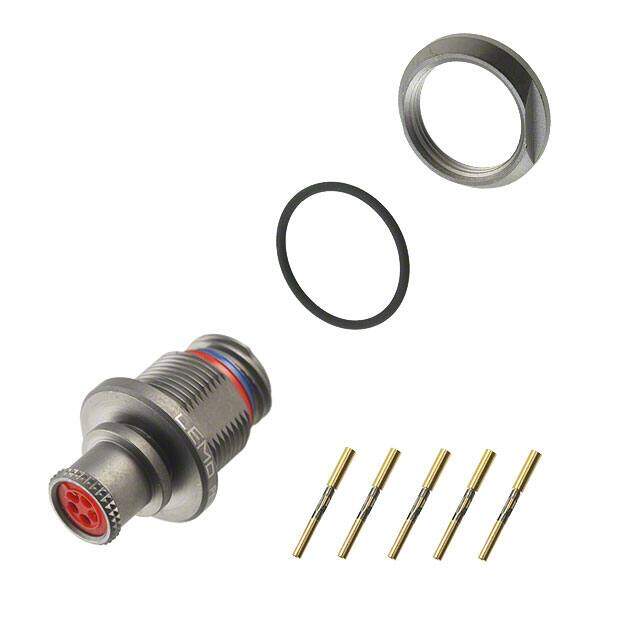

PEN.0M.304.XLMT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $53.47
Unit Price: USD $53.4688
≥1 USD $53.4688
≥10 USD $49.0688
≥100 USD $47.18208
≥500 USD $45.609168
≥1000 USD $43.092808
Inventory: 107
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Cable Opening 0.315 (8.00mm)
Environmental Characteristics FLUID/VIBRATION RESISTANT
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 304
Shell Finish Nickel
Current Rating 7A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Additional Feature POLARIZED
Applications Aerospace, Automotive, Aviation, Military
Color Gray
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 0M
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Aluminum Alloy
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Flanges, Front Side Nut, Panel
Contact Material Bronze
