HGP.0E.304.CLLPV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

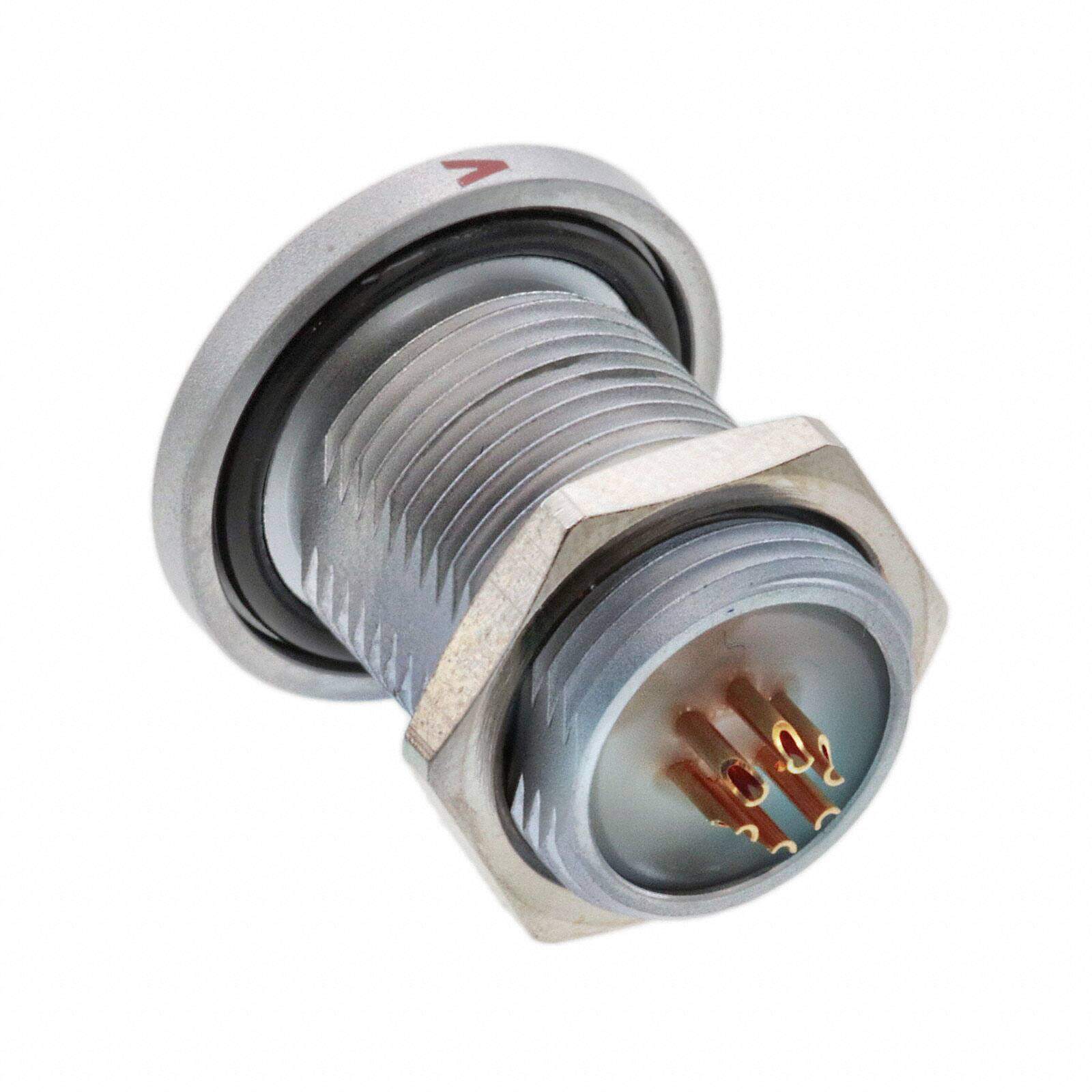

Circular Push Pull Connectors HGP Fixed Rec 0E Series 4P
PDF
/
Buying Options
Total Price: USD $40.55
Unit Price: USD $40.5504
≥1 USD $40.5504
≥10 USD $35.50712
≥100 USD $33.972576
≥500 USD $32.8768
≥1000 USD $31.780848
≥3000 USD $30.027395
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass, Bronze
Contact Plating Copper, Gold, Nickel
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -20°C~100°C
Packaging Bulk
Series 0E
Feature Potted, Vacuumtight
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets and Male Pins
Number of Positions 4
Color Silver
Fastening Type Push-Pull
Voltage - Rated DC 1.5kV
Contact Finish - Mating Gold
Orientation Keyed
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 7A
Shell Finish Chrome
Shell Size - Insert 304
Voltage - Rated AC 1.06kV
Contact Gender Female
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 26 AWG
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP68, Waterproof
