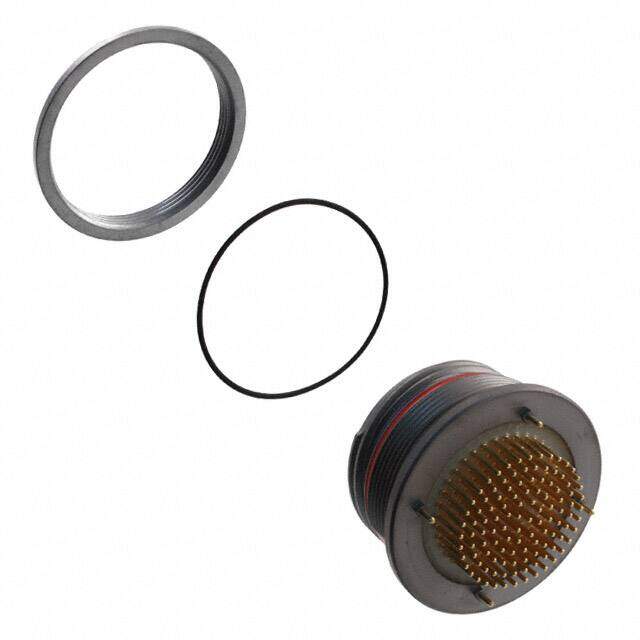

HEW.5M.114.XLNP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Standard Circular Connector 14P FEMALE PCB RECPT BACK PANEL MOUNT
PDF
/
Inventory: 8424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Mount Flanges, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Aluminum Alloy
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Series 5M
Feature Potted
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 114
Color Gray
Applications Aerospace, Automotive, Aviation, Military
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation W
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 2A
Shell Finish Nickel
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP68, Waterproof
