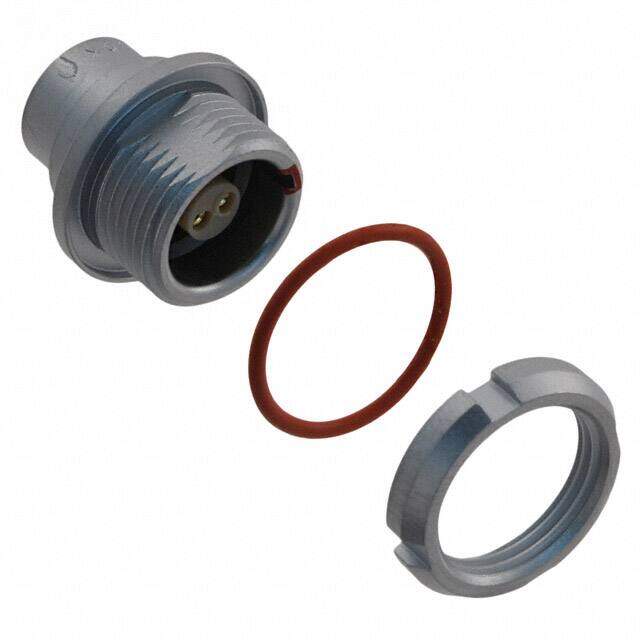

HEG.0K.302.CLLP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $41.31
Unit Price: USD $41.3072
≥1 USD $41.3072
≥10 USD $37.90776
≥100 USD $36.4496
≥500 USD $35.234672
≥1000 USD $33.290752
≥3000 USD $32.318739
Inventory: 230
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Wire/Cable Gauge 22 AWG
Contact Gender Female
Voltage - Rated AC 1.3kV
Shell Size - Insert 302
Shell Finish Chrome
Current Rating 10A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Voltage - Rated DC 1.84kV
Fastening Type Push-Pull
Applications Aviation, Military
Color Silver
Number of Positions 2
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Potted
Series 0K
Packaging Bulk
Operating Temperature -20°C~100°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Flanges, Front Side Nut, Panel
Contact Plating Copper, Gold, Nickel
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
