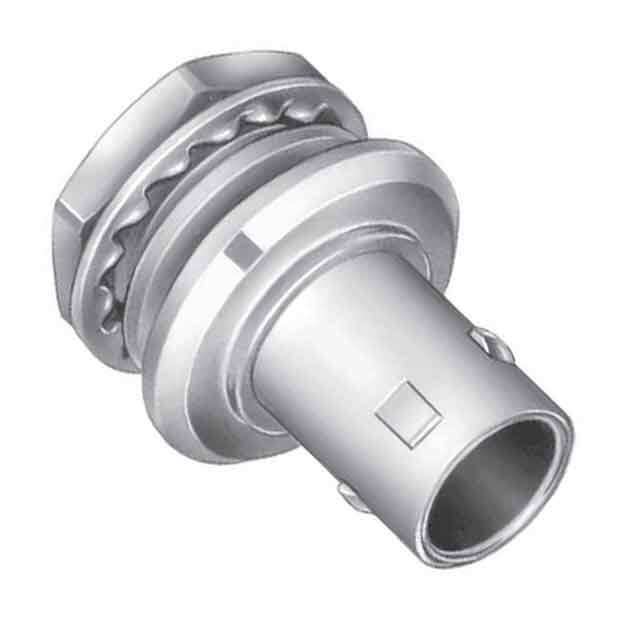

FWG.1B.307.CLA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED PLUG NUT FIXING
PDF
/
Inventory: 8798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material NOT SPECIFIED
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Backshell Material, Plating Brass, Chrome
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 1B
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 7
Color Silver
HTS Code 8536.69.40.20
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 7A
Shell Finish Chrome
Shell Size - Insert 307
Contact Gender Male
Contact Style Pin
Dimensions
Diameter 18mm
Length 24.9mm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
