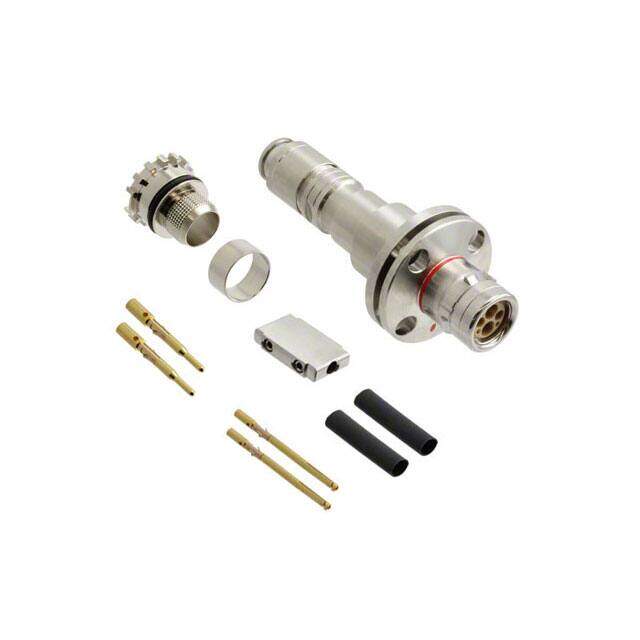

FMW.3K.93C.TLMC96Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 6POS GOLD CRIMP
PDF
/
Inventory: 8441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
Technical
Cable Opening 0.350 ~ 0.374 (8.90mm ~ 9.50mm)
Plating Nickel
Contact Gender Female
Number of Contacts 1
Shell Size - Insert 93C
Current Rating 10A
Ingress Protection IP68 - Dust Tight, Waterproof
Orientation W
Current Rating (Amps) 3A 10A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Applications Audio, Video
Number of Positions 6 (2 + 2 Fiber Optic + 2 Power)
Connector Type Plug, Female Sockets
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Strain Relief
Series 3K
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Backshell Material, Plating Stainless Steel
Insert Material Polyetheretherketone (PEEK)
Shell Material Stainless Steel
Mounting Feature Flange
Mounting Type Free Hanging (In-Line); Panel Mount
Mount Flanges, Free Hanging, Panel
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
